CHAMELEON variable lifting platform (production - Czech Republic)
The elevating, variable platform CHAMELEON, made in the Czech Republic, is intended for clients in wheelchairs or for 2 standing persons. The CHAMELEON platform handles the transportation of clients from a total barrier height of 100 mm to a height of 650 mm.
CHAMELEON variable lifting platform (production - Czech Republic)
The elevating, variable platform CHAMELEON, made in the Czech Republic, is intended for clients in wheelchairs or for 2 standing persons. The CHAMELEON platform handles the transportation of clients from a total barrier height of 100 mm to a height of 650 mm.

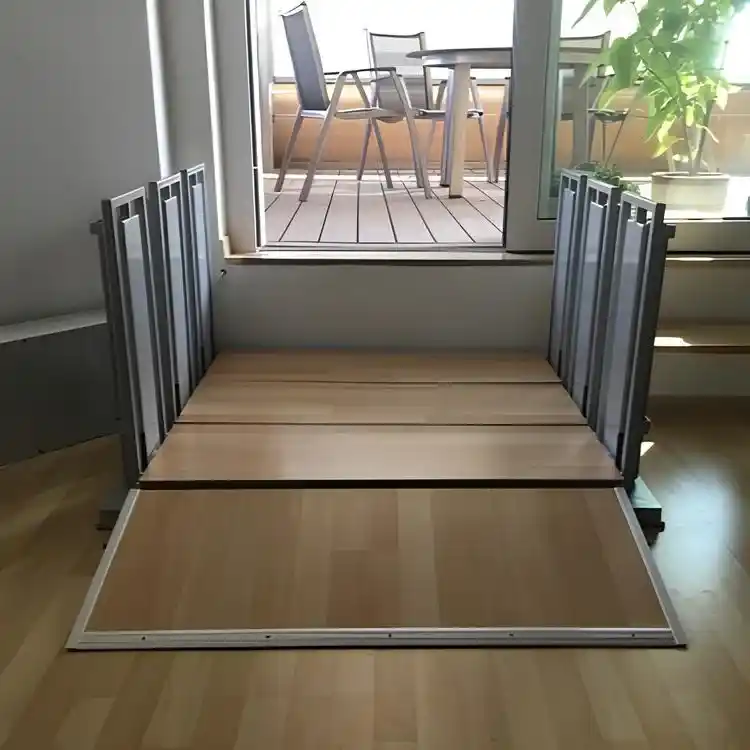

In its normal basic condition, it forms a staircase and is composed of three (height-adjustable) stair steps. This ensures that even with the maximum achievable lift height, the staircase will have standard parameters (height of the "stair" 165mm x tread width 310mm). The chosen width of the treads ensures a sufficient total width of the platform (approx. 1m) at the moment of the "platform" function. When the "platform - drive up or down" function is selected, the stairs will descend to the upper or lower station, depending on the selected direction of travel. Here, a continuous platform is created from the individual steps, on which the client overcomes the specified obstacle by going up or down. To ensure the smoothness of travel and the concurrency of all stair steps, the operation of the individual lifting columns is controlled by a control circuit that evaluates the load on the individual legs and controls according to the pulses of the motors voltage for individual lifting columns. This ensures that even if the individual steps are loaded differently, the overall platform moves as one continuous "plate". After reaching the end station and people exiting the platform, the platform can be transformed back into a staircase.
OPTIMAL LOCATION:
• Place of existing stairs.
• To straight obstacle - ramp.
• Wherethere is little space for classic on-ramp.
BENEFITS:
Provides dual function - stairs, platform. Silent operation thanks to the linear drive stair steps. The design and shape of the handrails, surface and material stair are adaptable to the existing staircase or client requirements. Driving is possible even with a 240VAC failure - the platform is equipped with a backup power source energy.
• Bezpečné pracovní napětí: 24 VDC.
• Kapacita akumulátoru do 15 Ah / 24 V.
• Labíjení řízenou nabíječkou s nabíjecím proudem 2 A / 24 V.
• Maximální hmotnost přepravované osoby až 240 kg se současným zatížením dvou schodů.
• Maximální hmotnost přepravované osoby až 120 kg se současným zatížením jednoho schodu.
• Lapájecí napětí nabíječky: 240 VAC.
• Ovládání dálkové rádiové nebo tlačítkové.
